Object Scanning

single phase analysis

The button starts the scanning phase or image analysis for the Current Memory or single phase.

Only the objects in the defined regions of the binary image, according to the selected Analysis Mode and Constraints, will be analyzed.

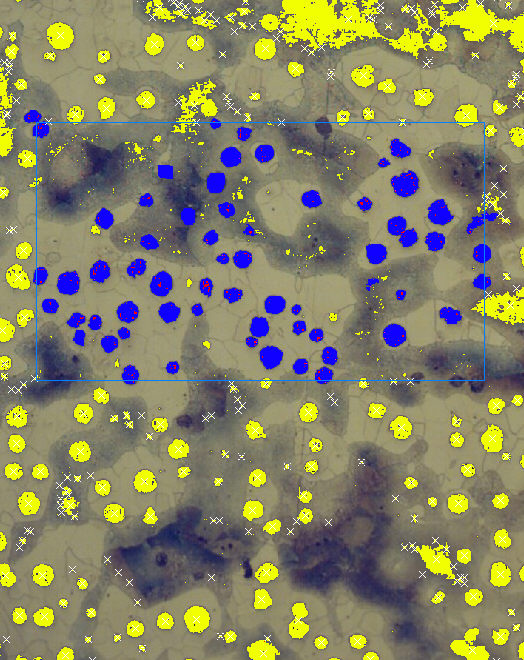

At the end of the scanning phase, the original image will be displayed with superimposed on top of it the analyzed objects in the binarization color.
If Fill All is active, holes will be shown in red.
At the end, the Results: All Objects dialog will be displayed.



multiphase image analysis

The button in the Multiphase group box starts the multiphase analysis for the selected phases.
At the end, the Results: All Objects dialog will be displayed.
