Measurement Constraints

constraints

You can set constraints, excluding from the analysis those objects which do no fall within the chosen intervals, to all measurement functions selected in Define Object Measurements.
You can define the higher value and the lower value for the interval of each function and the interior or exterior range of the active interval.
Each single constraint can be enabled or disabled by the user.

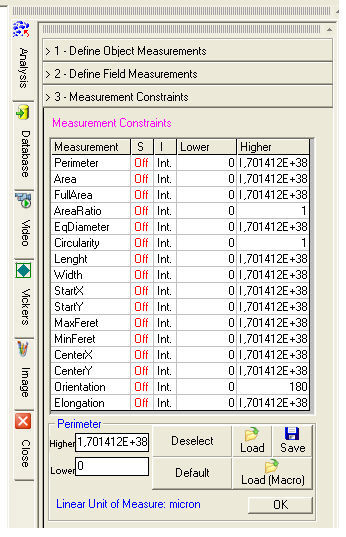

List of Measurement Constraints

The available functions appear in the list of Measurement Constraints.

The S column allows you to enable/disable the constraint for each single function. OFF and ON indicate the option selectable with the mouse.
By selecting a function, you enable a constraint.

The I column defines the active interval for the constraint: Int. = Interior Interval (inside the interval)and Ext. = Exterior Interval (outside the interval). The option is selectable with the mouse.

The Lower and Higher columns define the extremes of the interval. These values can be set in the Lower and Higher boxes.

Deselect

Disables all the constraints, setting all the functions to OFF  without changing the values of the intervals.

Default

Disables all the constraints, setting all the functions to OFF and the intervals to their original values.


Load

Allows you to load a previous constraint configuration.


Load (Macro)

Allows you to load automatically a constraint configuration during the runnung of a macro. Use this button during the recording of a macro to select a constraint configuration to be used. By using the Load button instead of Load (Macro), the running of the macro will be interrupted and you will be asked to select the configuration file to be used.

Save

Saves the constraint list for future use.

OK

Confirms the modifications to the current list.
