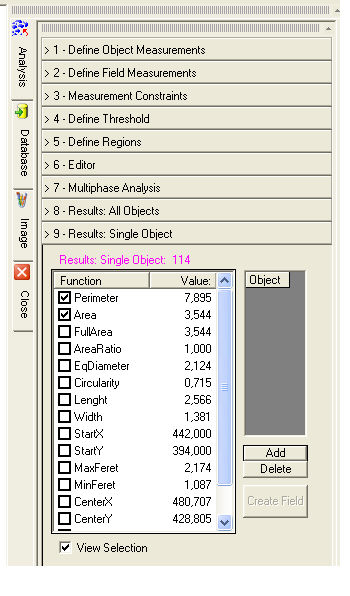

Results: Single ObjectThis dialog is displayed only after the scanning of the image and for as long as the analyzed image remains valid. The objects not involved in the analysis are not displayed.
By clicking the left mouse button on the desired object, the results of the functions selected in Define Object Measurements will be shown.
The dialog displays the list of selected functions with their calculated numeric values.
The functions with selected check boxes and their values will also be displayed on the image if the View Selection option is active when selecting the object.
Each selected object can be inserted in the Object List by pressing the Add button or by clicking the right mouse button. Such objects are colored yellow.
An object inserted in the Object List can be removed by selecting it in the list and by pressing the Remove button.
If at least an object is in the list the Create Field button becomes active. This allows you to create a new field consisting of only those objects present in the list. Once the field is created the Results: All Objects dialog is displayed.
